Front-end Loader Plans

Turn an ordinary tractor into a portable loader

A SOLID PLAN and some ingenuity can save you thousands of dollars, simplify long-term maintenance, and transform a "dated" piece of equipment into a go-to solution for landscaping and maintenance done on your property. P.F. Engineering's Front-end Loader Plans have enabled hundreds of customers to upgrade their ordinary tractors.

Front-end Loader Plans from P.F. Engineering demystify construction of a loader attachment for your tractor. They break the project down into doable steps that can be carried out by you or someone you employ. Equipped with our experience and detailed information, you control your project's budget and schedule. And, you know what maintenance and repairs will cost in the years to come.

Click to watch

Take a look at this video that one father-and-son team made after building a front-end loader from our plans. Pride for their weather-tested Cub Cadet 1650 and its new capabilities are evident.

Front-end Loader Plans include:

Complete build instructions
Schematics for hydraulics
3D line-drawings
A materials list for all steel, hydraulics and hardware
A list of online suppliers

P.F. Engineering's founder, Paul, still uses the original loader attachment that he built more than 20 years ago. The loader originally girded a 1974 Cub Cadet 149, which was a large-frame garden tractor that weighed 750 pounds. Eventually, he swapped tractors, but kept the loader.

Paul's loader now outfits a 1986 Ford 1110 compact tractor, which is a 4-wheel drive, diesel model that weighs 1,400 pounds.

Regarding the swap, he said, "It fit right on, only needing adjustments to the subframe mounting points."

Even the larger tractor's on-board hydraulics connected.

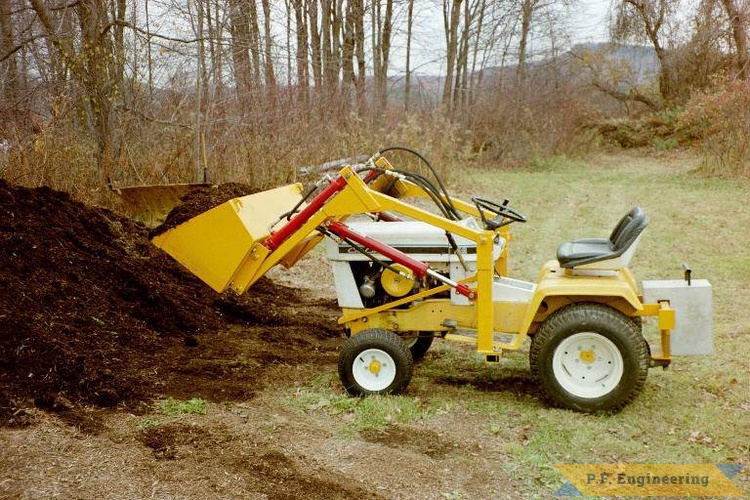

Paul’s Cub Cadet 149 with front-end loader attachment.

Paul's former Cub Cadet 149 with front-end loader attachment.

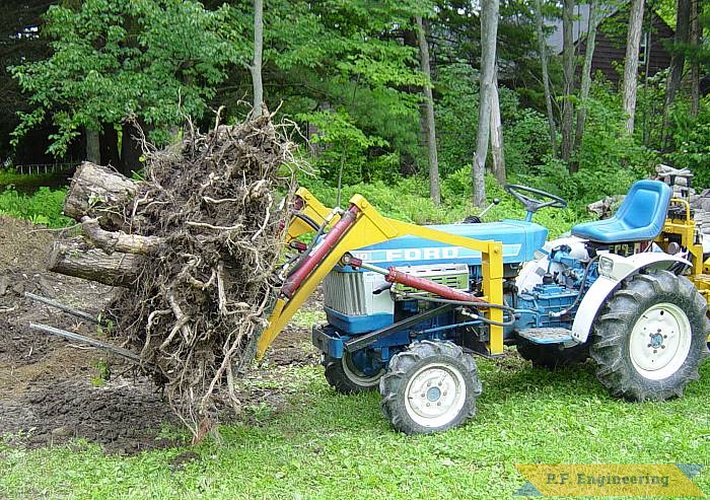

Paul’s Ford 1110 with outfitted with his original front-end loader

Paul's Ford 1110 with outfitted with his original front-end loader

Here are some specs:

	Imperial	Metric
Overall weight:	325 pounds	148 kg
Lift capacity:	well over 500 pounds	well over 226 kg
Lift height to level bucket:	73 inches	1854 mm
Bucket width:	42 to 54 inches	1067 to 1372 mm
Bucket capacity:	0.21 to 0.27 cubic yards (yd³)	161 to 206 liters (L)
Bucket roll down:	50 degrees at maximum lift	50 degrees at maximum lift
Built-in oil reservoir
Spin on oil strainer element
Joystick control option
Estimated cost to build:	$1200
